Alpha Silver Series Jobber Drill 9.5mm - Carded

SKU:
C9LM095S
Minimum Purchase:
1 unit
  • Alpha Silver Series Jobber Drill 9.5mm - Carded
  • Alpha Silver Series Jobber Drill 9.5mm - Carded
  • Alpha Silver Series Jobber Drill 9.5mm - Carded

Also Available:

Also Available:

Description

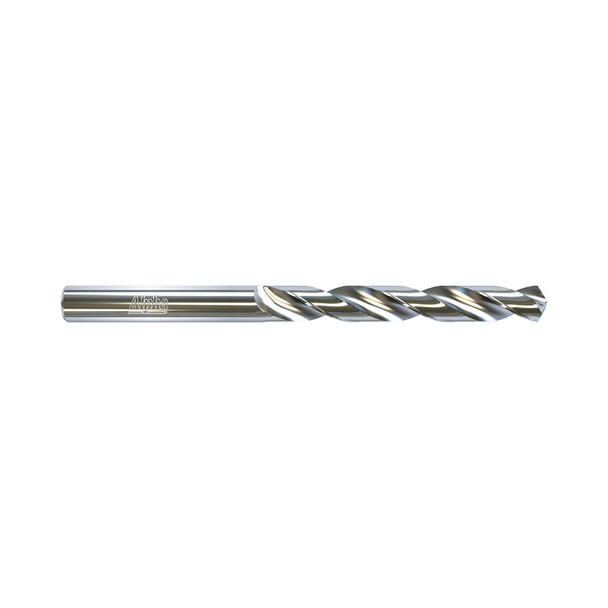

Alpha Silver Series Jobber Drill Bit

When you go to buy a drill bit, what are you needing? Just a drill? or do you actually want HOLES?

DRILL FEATURES

• M2 HSS Fully ground M2 HSS material increases drill life

• 118º Split Point cuts faster and reduces wandering

• Suitable for drilling wood, steel, plastic.



DRILLING PRACTICE

The flute form, web thickness and split point of the standard Alpha drills are suitable for most materials forming fine chips. For effective drilling, the rigidity of the drilland work piece are most important. The shorter the flute length the more rigid the drill. Long drills must be adequately supported to reduce vibration.

The following are important in drill use :

• Clamp the work piece securely

• Select the correct speed and feed

• Use an appropriate coolant or lubricant

• Ensure the shank is securely held. Avoid using worn drill chucks as the drill may slip during use.

• Regrind the point or replace the drill before it dulls, do not force a worn drill.

• When deep hole drilling, withdraw frequently to clear the chips ( deep holes start at 4X the diameter)

• For stainless steel, manganese and high tensile steels, do not allow the drill to swell as it will cause work-hardening. Use a slower speed and heavier feed for these materials.

View AllClose

Additional Information

Alts:
9LM095;C9LM095;9LM095S;9LM095CO
Pack Size:
1
Package Quantity:
1
BIN:
38.05
